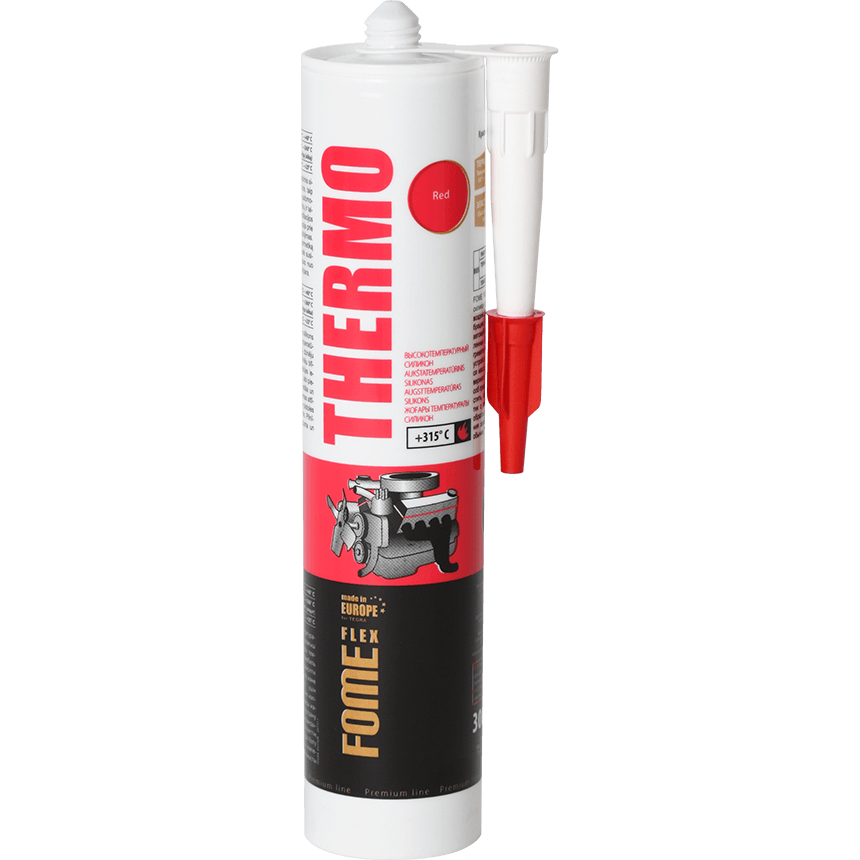

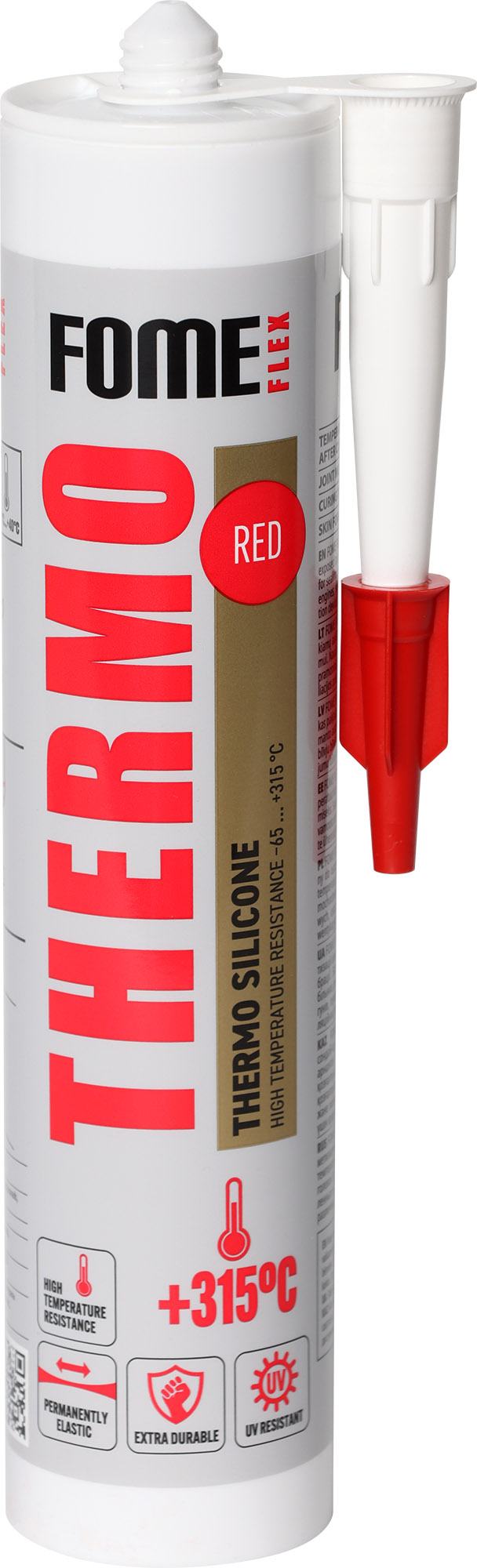

High temperature acetate silicone for red seams exposed to high temperature and vibration sealing. Often used for sealing car engines, ducts and ovens. Elastic and chemical resistant. Thermal resistance after hardening to +315 ° С. Seam mobility 20%. Users manual – surfaces must be clean, free of grease residues and dry. Cut off the end of the cartridge tip and screw the nozzle included in the kit onto it. Insert the cartridge into the syringe gun and fill the nozzle with sealant by squeezing the trigger of the gun several times. The film forms in 5-30 minutes. Fully hardens within 24 hours. Working temperature from +5 ° С to +40 ° С. Temperature resistance of the seam from -65 ° С to +315 ° С.
| INDEX | UNITS | VALUE | CERTIFICATION |
|---|---|---|---|
| COLOUR | RED | ||
| BASE MATERIAL | ACETATE SILICONE | ||
| DENSITY | g/ml | 1,02 | ISO 2811-1 |
| MODULE 100% | N/mm2 | 0,45 | ISO 8339 |
| TENSILE STRENGTH | % | 97 | ISO 7389 |
| MOLD RESISTANCE | min. | 5-15 | |
| CORRECTION TIME | m | 15 | |
| YIELD (5 MM SEAM) | min. | 5-30 | |
| SKIN FORMING TIME | % | 20 | ISO 9047 |
| ELONGATION AT BREAK | % | 112 | ISO 8339 |
| HARDNESS (SHORE A) | 27 | ISO 868 | |
| VERTICAL LEAKAGE | mm | 0-3 | ISO 7390 |
| FULL CURING TIME (3-4 MM) | h | 24 | |
| TEMPERATURE RESISTANCE AFTER CURING | oC | -65...+315 | |
| WORKING ENVIRONMENT TEMPERATURE | oC | +5...+40 | |
| VOLUME | ml | 300 |
Store upright in a dry place at a temperature between 0 ° C and +25 ° C. Shelf life - 24 months from the date of manufacture, in accordance with the storage rules. Quantity in the box - 12 pcs. Quantity on the pallet - 1440 pcs. The weight of one vial is 0.381 kg. Transport temperature from -15 ° C to +25 °C.
